EPT 1000

EPT 1000 is a motorized pull force tester for measurement of the pull forces in crimp connections and peeling forces in welding joints.

Versatility and ease of use are provided by rotating interchangeable sample holder, long displacement path and intuitive graphical interface. A speed-controlled motor guarantees constant pull speed and accurate results.

The testing process is visualized on the graphical display in real time, and the results are automatically saved to the archive.

Learn more about quality control

Technical characteristics

Measurement range
0 – 1000 N (can be changed upon demand)
Accuracy
0,05-1% of max. measurement range
Measurement units
N, kgf, Ibf
Variable pull speeds
25, 50 and 100 mm/min.
Operating temperature
0 – 40° C
Max. displacement
157 mm
File synchronization via USB or Wi-Fi
Ingress protection
IP 20
Power supply
220 V/AC
Weight
11,5 kg
Dimensions (W x D x H)
450 x 185 x 170 mm
Measurement modes
Break, Hold, Hold & Break
CE and EMC machinery conformity

STANDARD FEATURES
OPTIONS

STANDARD FEATURES

Extra-long displacement path

Thanks to well-thought-out system (motor, guides, etc.) EPT 1000 allows displacement up to 157 mm. It makes the device applicable to large connections.
Changeable force sensor

Pull-force sensor is selected according to customers demand. Thus measurement range and accuracy can vary.
Ergonomic clamp arrangement

As a sample holder, a clamp or adapter with 12 slots of various widths are installed for wires of appropriate diameter. Therefore, the device can be used for almost all required cable processing tests (IEC 60352-2).

Sample positioning is as easy as ABC: operator pushes the lever and place the sample, as soon as the lever is released the spring system automatically pulls the clamp back. No need for a wrench or other special tools.
Measurement archive

Measurement is done automatically in the selected mode. It is also possible to move the carriage manually if necessary. Results are visualized in real time in the form of force-time curve graphics. Measurement modes:

1. Break (destructive) – the sample is pulled to break. The break point is determined by 25% of the applied maximum force.

2. Hold – the sample is not destroyed during this test. It is subjected to a defined force Fh. The applied force is held for a defined time Th.

3. Hold & Break – two previous modes are combined (hold and pull off). First, the hold mode is applied. Its duration is equal to time Th. Then the wire is subjected to a breaking pull force.

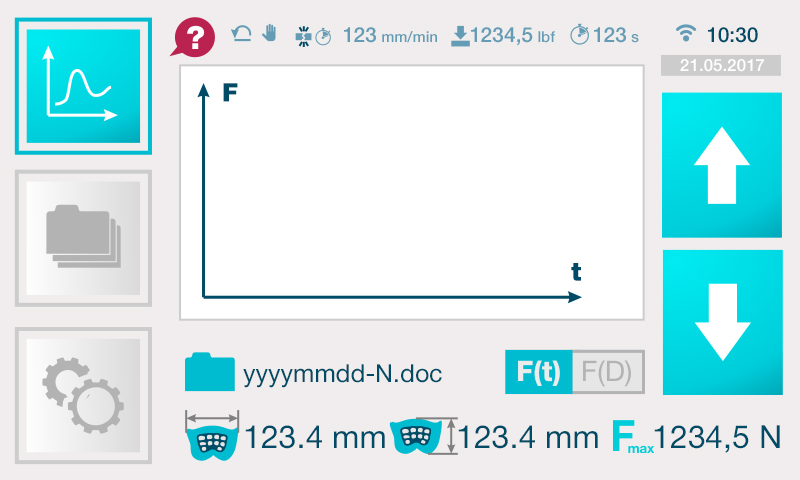

Measurement archive

All measurements results are saved even if the test is aborted: selected mode, force-time curve graphics, crimp width and height, maximum force, and hold duration of maximum pull-force (in Hold and Hold & Break modes).

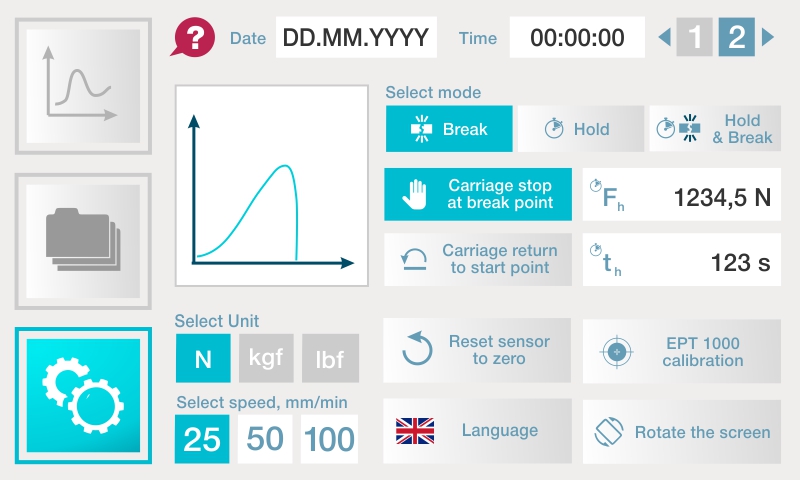

User-friendly touch screen interface

65536-colour touch screen displays current measurement features, its settings and measurement archive. Settings menu allows to choose a mode, its parameters and carriage options, to select speed, interface language and measurement unit, as well as to start calibration of the device.
Intuitive navigation simplifies operation and enables reproducible test results.
